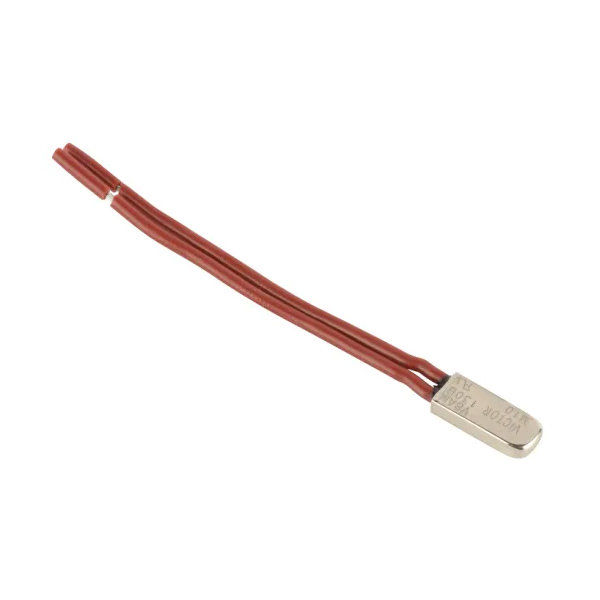

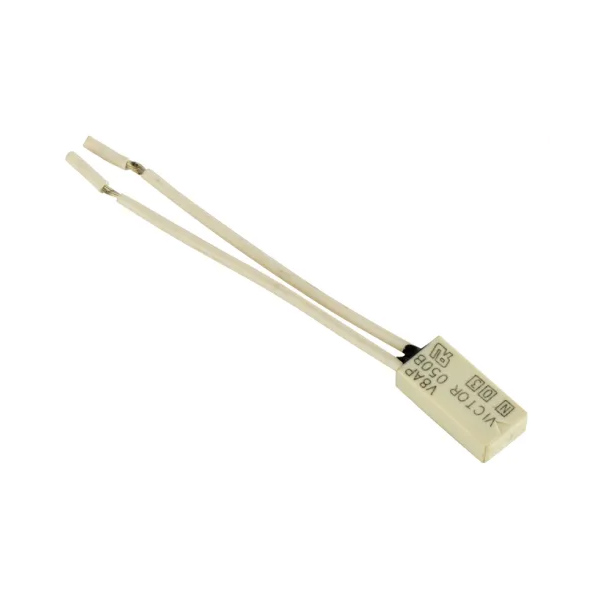

Victor Snap Action Current Protector V8ap Iron Shell Package

Details

V7AM(A) is an excess-current thermal protector with compact design, large contact capacity, promptly snap action and 100% quality inspection before shipment. Gasketed case suitable for different impregnation processes. Wide selection of leads and insulating sleeves to fit customer's needs.
Main applications:
Below 1 HP motors.
Commutator of fluorescent lamps.
Transformers.
Lighting lamps.
Electric Blankets.
Heating Pads.
Laminators.
Various household appliances
Features:
A compact design, precise Snap Action operation.
Automatic reset after tripping off.
Short circuit can be eliminated by leading wire & attached insulation sleeve.
Length and leads type is optional.
Electrical Characteristics:
20 AMPS/120 volts AC
9 AMPS/240 volts AC
18 AMPS/ 16 volts DC
Temperature Range and Tolerance:
Available with nominal calibration temperature from 35 to 180 c
Tolerance Code ± 3, ± 5 c
Approvals:
UL and C-UL File NO: E254470 (UL2111) E246870(UL873)
VDE License No. 40015405 (V7AM Only)
TUV License No. R 50063371 (V7AM Only)
CQC License (V7AM Only)
RoHS ( 2002/95/EC Directive )and Reach correspondence
