Ningbo Victor Snap Action Current Protector V8AM Iron Shell Package

Details

V8AM / P series

Temperature controller specification

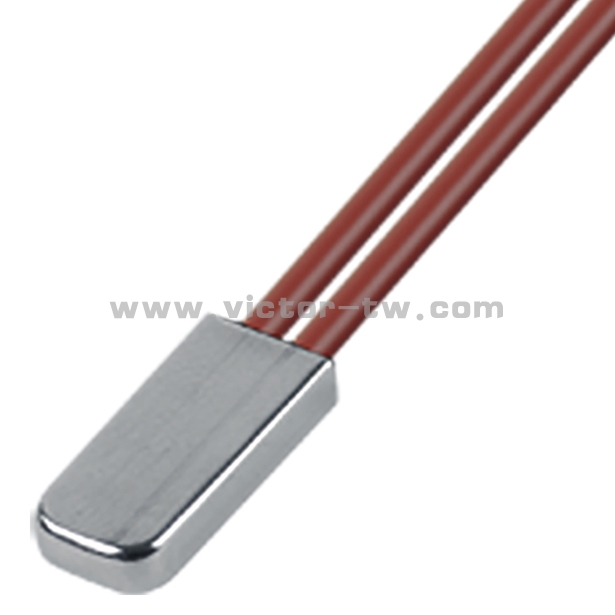

V8am / P adopts the overheat protector encapsulated in iron shell, which has double protection functions of over temperature and over-current. It has small volume, large contact capacity and quick tripping action. It is mainly used in AC / DC motor / motor, transformer, lighting lamp, battery pack and various small household appliances.

Electrical parameters:

12 amps/120 Vac

8 amps/240 Vac
15 amps/ 24Vdc

Temperature and tolerance range:

35 ℃ - 150 ℃ (one specification per 5 ℃);

Operating temperature tolerance: ± 2 ℃, 3 ℃ and ± 5 ℃
(generally ± 5 ℃)

Certification:

(eul683) and (eul683)

VDE 1
CQC
It meets the requirements of EU ROHS environmental protection directive (2002 / 95 / EC Directive).

Main applications:

Micro motor;

Battery pack;
Lighting fixtures;
Transformer;
Voltage regulator.

Module code

Style

M: V8am (metal)

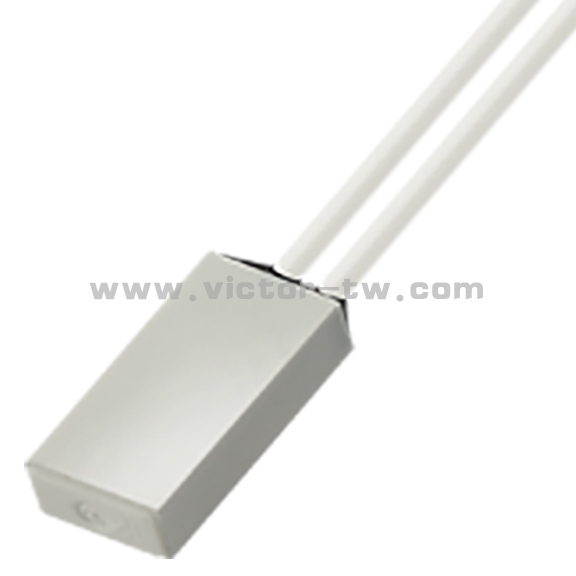

P: V8ap (plastic)

Temperature

050-150: 50-150 ℃

Ⅲ Tolerance

02: ±2℃;03: ±3℃; 05: ±5℃ (Standard)

Calibration year

A: 2003, B: 2004 ,…, Z:2028

Calibration weeks

The first week, 2: the second week ,...... week 52

Outline dimension drawing
