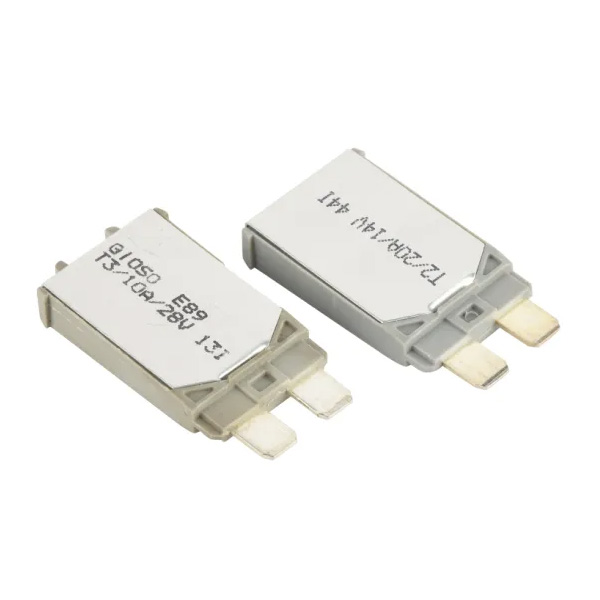

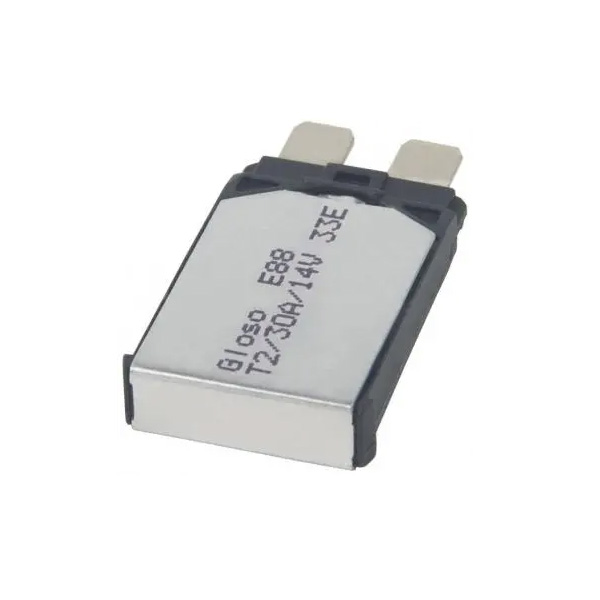

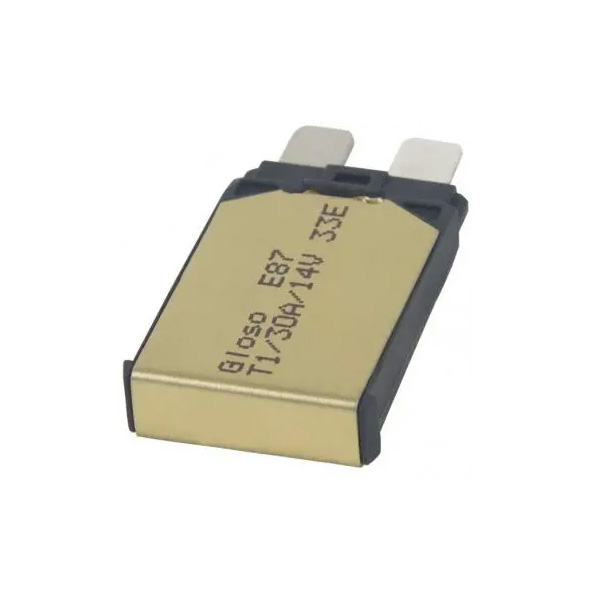

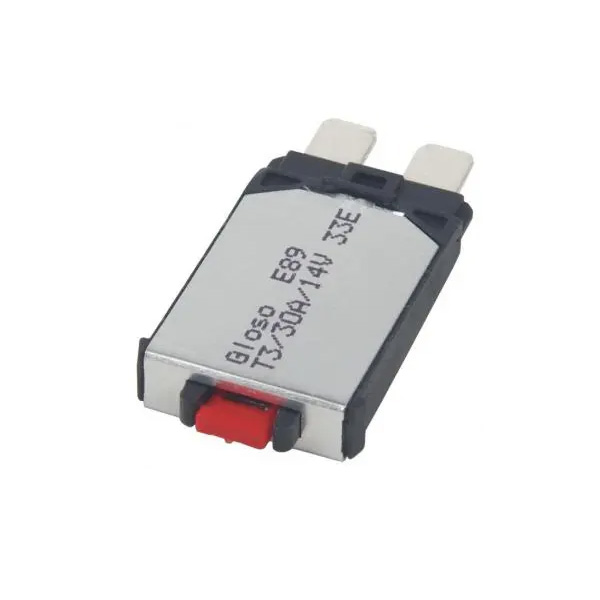

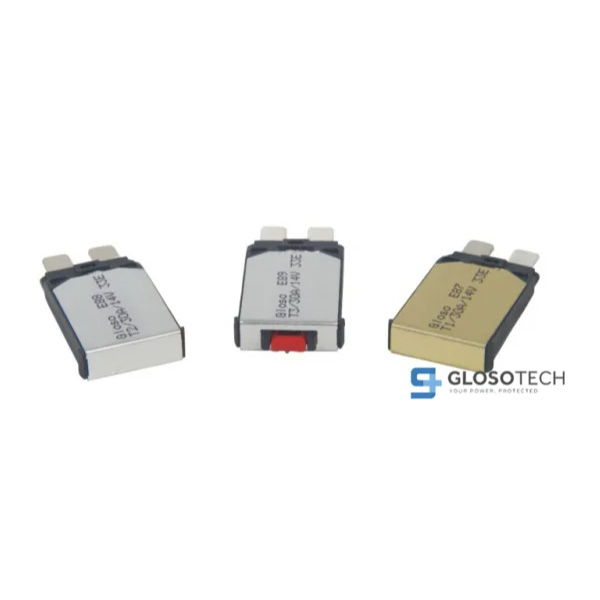

Metal Sheet Structure, Quick-Connect Terminal Design, Overcurrent Circuit Breaker
Details
Overcurrent
circuit breakers, is the use of bimetal structures, when the car back
to power overloads, rapidly power protection, users can be reset
manually switched on again,ATC type push-in terminal design, can replace
a disposable fuse , widely used in car modification and maintenance
market.
Cross to Bussmann 19X, MINI CIRCUIT BREAKERS
Rating: T1: 8-50A, 14Vdc
T2&T3: 8-50A, 28Vdc
Interrupt Rating:
150A@14Vdc (for 8-10A)
150A@14Vdc (for 8-10A)
225A@14Vdc (for 15A)
300A@14Vdc (for 20A)
450A@14Vdc (for 25, 30A)
600A@14Vdc (for 35, 40A)
750A@14Vdc (for 50A)
Operating Tempeature rating: -40ºF(-40ºC) to 185ºF(85ºC)
300A@14Vdc (for 20A)
450A@14Vdc (for 25, 30A)
600A@14Vdc (for 35, 40A)
750A@14Vdc (for 50A)
Operating Tempeature rating: -40ºF(-40ºC) to 185ºF(85ºC)
Stortage Temperature rating : -40ºF(-40ºC) to 260ºF(125ºC)
Marking: Type / Amp / Voltage
Termination:Compatible with fuse blocks using MAXI
Compliance: SAE J553
